Modular - Adjust

    360° lighting directions, tilt 30° to meet different angles requirement

    Slim height 39mm for various ceilings application

    Creative interchangeable cut out cutout 68mm to 83mm freely

    IP54 compact high performance architectural downlight, suitable for residential and commercial applications

    Full series: Fixed/Adjustable, White /Silver /Black colors

    Dimmable and RGBCW options


Download Annex

  • Parameters

    360° lighting directions, tilt 30° to meet different angles requirement

    Slim height 39mm for various ceilings application

    Creative interchangeable cut out cutout 68mm to 83mm freely

    IP54 compact high performance architectural downlight, suitable for residential and commercial applications

    Full series: Fixed/Adjustable, White /Silver /Black colors

    Dimmable and RGBCW options


Wattage (max)                                      10W

Lumens                                                  850lm (4000K)

Efficacy (Lm/W)                                    85lm/W (4000K)

CRI                                                          90

Colour temp                                         3000/4000/5000K

Input                                                     100-240V

Beam angle(°)                                      38°

Shape                                                    Round fixed

Cutout                                                   68-83mm

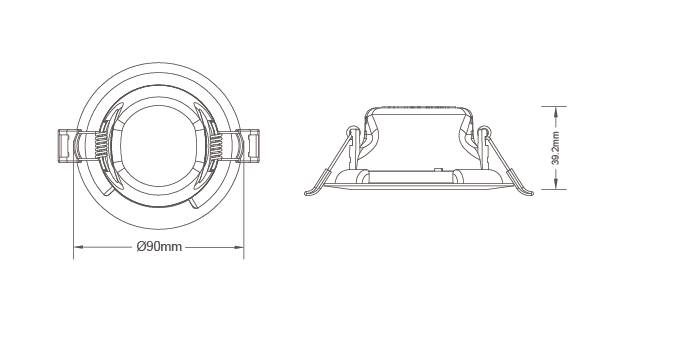

Recessed depth                                   39.2mm

Fixation                                                 Ceiling recessed

IP                                                            IP54

Lifespan                                                 50000H

Warranty                                               5 years

Colors                                                    White/Black/Silver

Power supply                                       ON-OFF/Triac-dim/0-10V/DALI

Article No.                                                                Description                                        Wattage                       CCT                                   CRI                IP

PUDLA2.5-005-06-S                                     Single CCT Downlight Triac Dimming                               5W                       3000/4000/5000K                        80/90              54

PUDLA2.5-005-06-DCM                              Multiple CCT Downlight by switch                                    5W                      3000-5700K                                    90                    54

PUDLA2.5-005-06-D2W                              Dim2Warm Downlight Triac Dimming                              5W                      1800-3000K                                    90                    54

PUDLA2.5-005-06-SC                                  Smart Control Downlight by Tuya APP                              5W                      3000-5700K                                    90                    54

PUDLA2.5-010-06-S                                     Single CCT Downlight Triac Dimming                               10W                     3000/4000/5000K                        80/90              54

PUDLA2.5-010-06-DCM                              Multiple CCT Downlight by switch                                    10W                    3000-5700K                                    90                    54

PUDLA2.5-010-06-D2W                              Dim2Warm Downlight Triac Dimming                              10W                    1800-3000K                                    90                    54

PUDLA2.5-008-06-SC                                  Smart Control Downlight by Tuya APP                              8W                      3000-5700K                                    90                    54

Modular - Adjust
Long press to look detail
Long by picture save/share

Modular - Adjust
