Frameless-68mm Round Fixed
> Angle changeable 38-60°, superior in stock management.
> Super Thinnest: 24mm height, wide application.
> Frameless design, unique in the market.
> Die-cast aluminium construction, good heat dissipation
> IP54 protection, passed 360hrs Salt spray test, suitable for bathrooms, outdoor under the roof, moist places with shelters...
> Dimmable, D2W, RGBW options
- Parameters
> Angle changeable 38-60°, superior in stock management.
> Super Thinnest: 24mm height, wide application.
> Frameless design, unique in the market.
> Die-cast aluminium construction, good heat dissipation
> IP54 protection, passed 360hrs Salt spray test, suitable for bathrooms, outdoor under the roof, moist places with shelters...
> Dimmable, D2W, RGBW options
Wattage (max) 8W
Lumens 700lm (4000K)
Efficacy (Lm/W) 88lm/W (4000K)
CRI 90
Colour temp 3000/4000/5000K
Input 100-240V
Beam angle(°) 38°/ 60°
Shape Round fixed

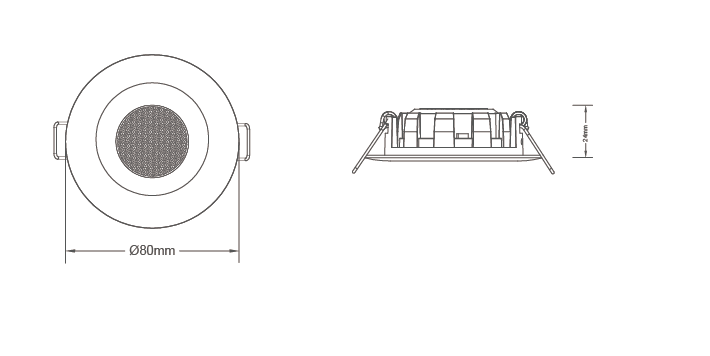

Cutout 68mm
Recessed depth 24mm
Fixation Recessed
IP IP54
Lifespan 50000H
Warranty 5 years
Colors White/Black/Silver/Brushed
Power supply ON-OFF/Triac-dim/0-10V/DALI
Article No. Description Wattage CCT CRI IP
PUCA2.5F-008-01-S Single CCT Downlight Triac Dimming 8W 3000/4000/5000K 80/90 54
PUCA2.5F-008-01-DCM Multiple CCT Downlight by switch 8W 3000-5700K 90 54
PUCA2.5F-008-01-D2W Dim2Warm Downlight Triac Dimming 8W 1800-3000K 90 54
PUCA2.5F-008-01-SC Smart Control Downlight by Tuya APP 8W 3000-5700K 90 54
