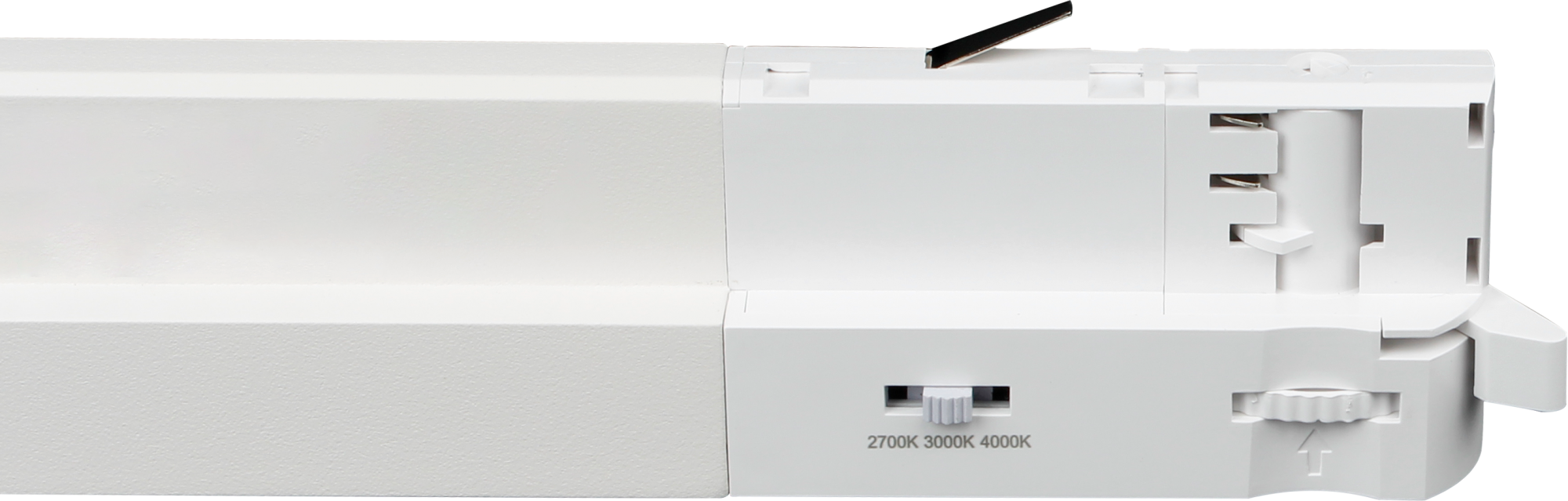

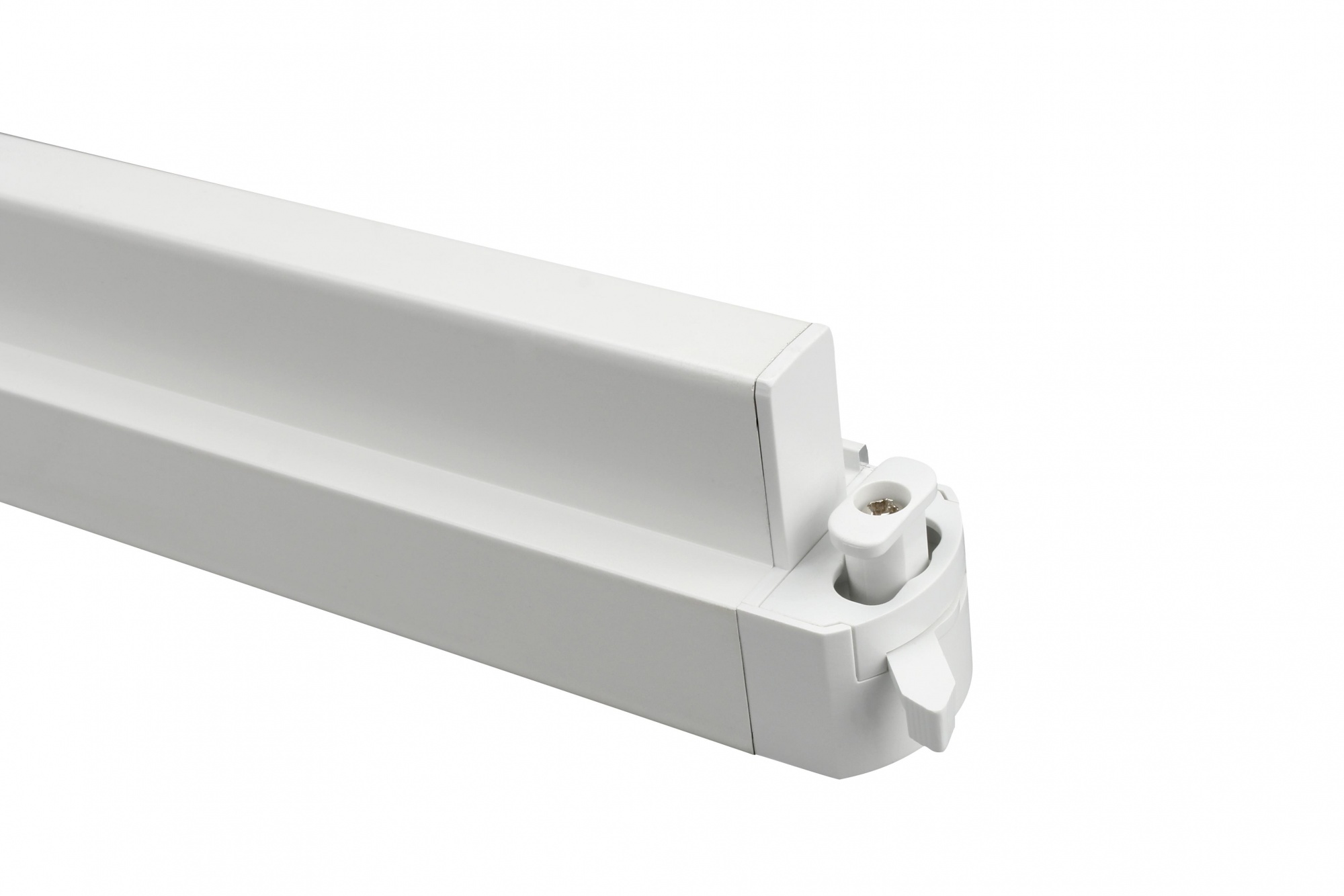

Track Linear PC Cover
> 3-Phase Track Adapter
> Excellent SMD2835 LED Light Source, Up to 130lm/W
> 3 Steps CCT Switchable, 2700K-3000K-4000K Optional
> Flicker Free Driver, THD＜15%
> L80B10 Lifespan (Ta=25℃): 50,000hrs, Warranty: 5 years
> Black / White Color Aluminium for Options
> Trackway for convenient installation and maintenance
> Application: Supermarket / Store / Warehouse / Library / Museum / Exhibition / Hotel
- Parameters
> 3-Phase Track Adapter
> Excellent SMD2835 LED Light Source, Up to 130lm/W
> 3 Steps CCT Switchable, 2700K-3000K-4000K Optional
> Flicker Free Driver, THD＜15%
> L80B10 Lifespan (Ta=25℃): 50,000hrs, Warranty: 5 years
> Black / White Color Aluminium for Options
> Trackway for convenient installation and maintenance
> Application: Supermarket / Store / Warehouse / Library / Museum / Exhibition / Hotel
Wattage (max) 20/30/40W
Lumens 5200lm max
Luminaire Efficacy (Lm/W) 130lm/W
CRI 90
Colour temp 2700/3000/4000K Switchable
Input AC220-240V
Beam angle(°) 120°
Fixation Track
IP IP20
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply Triac-dim
Article No. Wattage Lumen(max) CCT CRI Dimension
PUTL07-020-01 20W 2600lm 2700-3000-4000K 90 L705*W30*H48mm
PUTL09-030-01 30W 3900lm 2700-3000-4000K 90 L945*W30*H48mm
PUTL12-040-01 40W 5200lm 2700-3000-4000K 90 L1185*W30*H48mm
