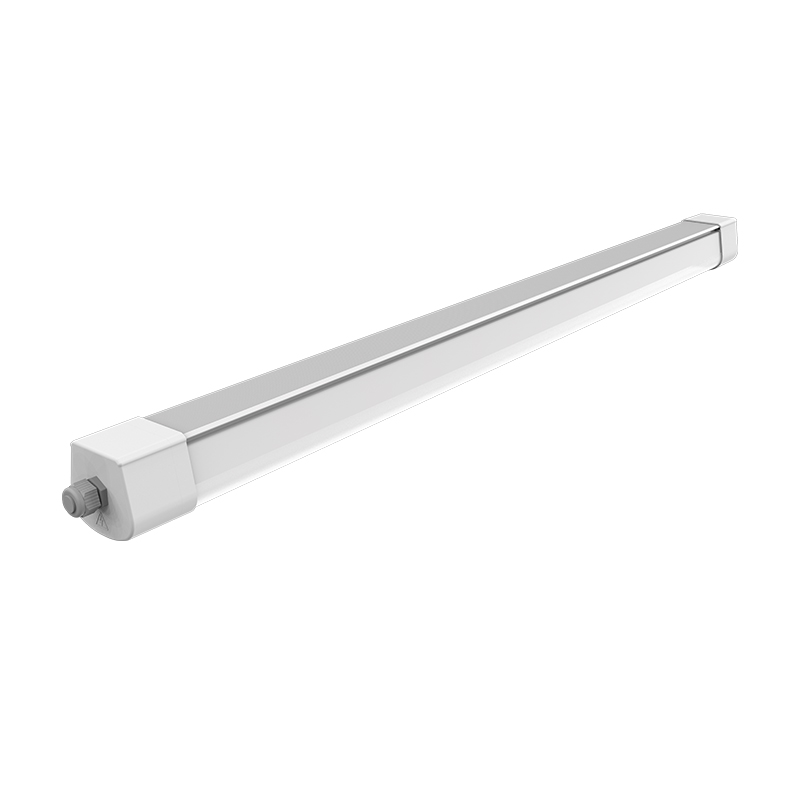

Tri-proof Light
> Products can be series connection
> The led board can be taken out, led board and driver are replaceable, wattage switchable
> Buckle design, easy to install and take out
> 5-pole quick connector
> Installation: Surface mounting /Suspension /Horizontal suspension
- Parameters
> Products can be series connection
> The led board can be taken out, led board and driver are replaceable, wattage switchable
> Buckle design, easy to install and take out
> 5-pole quick connector
> Installation: Surface mounting /Suspension /Horizontal suspension
Wattage (max) 25/32/38/45w switchable or 35/44/53/63w switchable
Lumens 7200lm max/ 10080lm max
Luminaire Efficacy (Lm/W) 160lm/W
CRI 80
Colour temp 4000K
Input AC220-240V
Beam angle(°) 120°
IP IP65
IK IK08
Lifespan 50000H
Warranty 5 years
Colors White
Article No. Wattage Lumen(max) Efficiency CCT CRI Beam Angle Dimension Input Voltage IK IP
Tri-proof Light 25/32/38/45W 7200lm 160LM/W 4000K 80 120° 1200X80X74MM 200-240V 08 65
Tri-proof Light 35/44/53/63W 10080lm 160LM/W 4000K 80 120° 1500X80X74MM 200-240V 08 65
