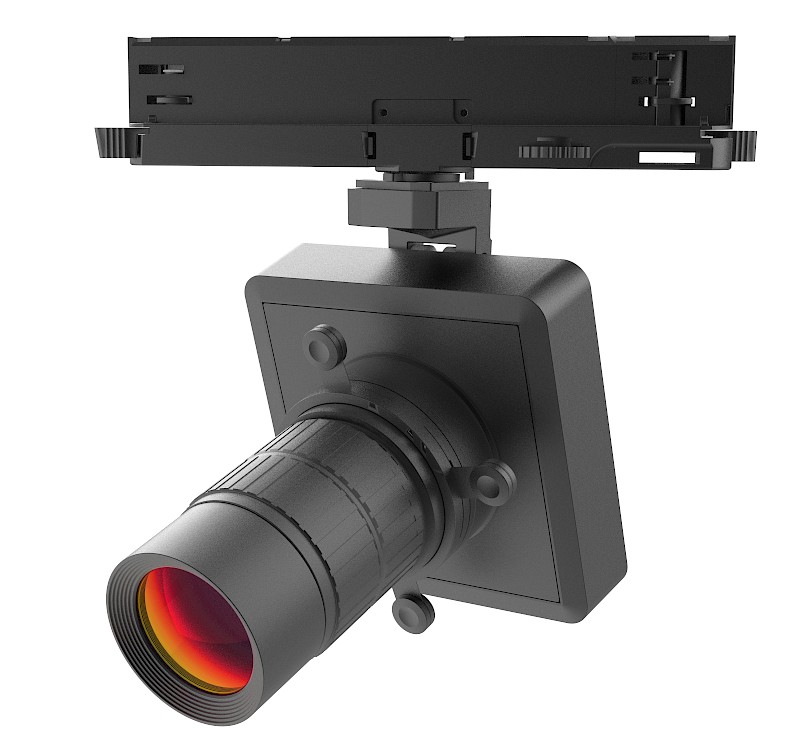

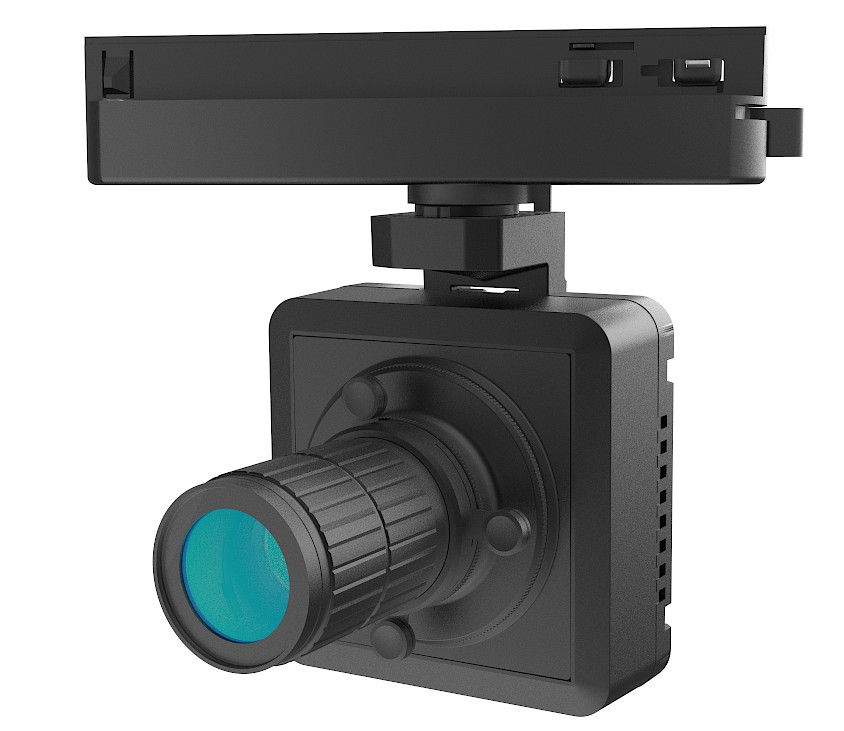

Leica Cutting Lens
> Zoom & Cutting Lens Change Freely
> Cutting lens for different lighting performance
> CCT change in 3-steps, wattage switchable
> Various accessories for functional usage
> Match standard 2-wires, 3-wires, 4-wires track rails
- Parameters
> Zoom & Cutting Lens Change Freely
> Cutting lens for different lighting performance
> CCT change in 3-steps, wattage switchable
> Various accessories for functional usage
> Match standard 2-wires, 3-wires, 4-wires track rails
Wattage (max) 15/28W
Lumens 1100lm max
Luminaire Efficacy (Lm/W) 40lm/W
CRI 90
Colour temp 2700/3000/4000/5700K
Input AC220-240V
Beam angle(°) 45°
Fixation Track
IP IP20
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply 0-10V/DALI
Article No. Wattage Lumen(max) CCT CRI Beam Angle Dimension Lens Size
PUTL95-015-05B 15W 300lm 2700/3000/4000/5700K 90 45° D95*95mm D45mm
PUTL120-028-05B 28W 1100lm 2700/3000/4000/5700K 90 45° D120*120mm D80mm
