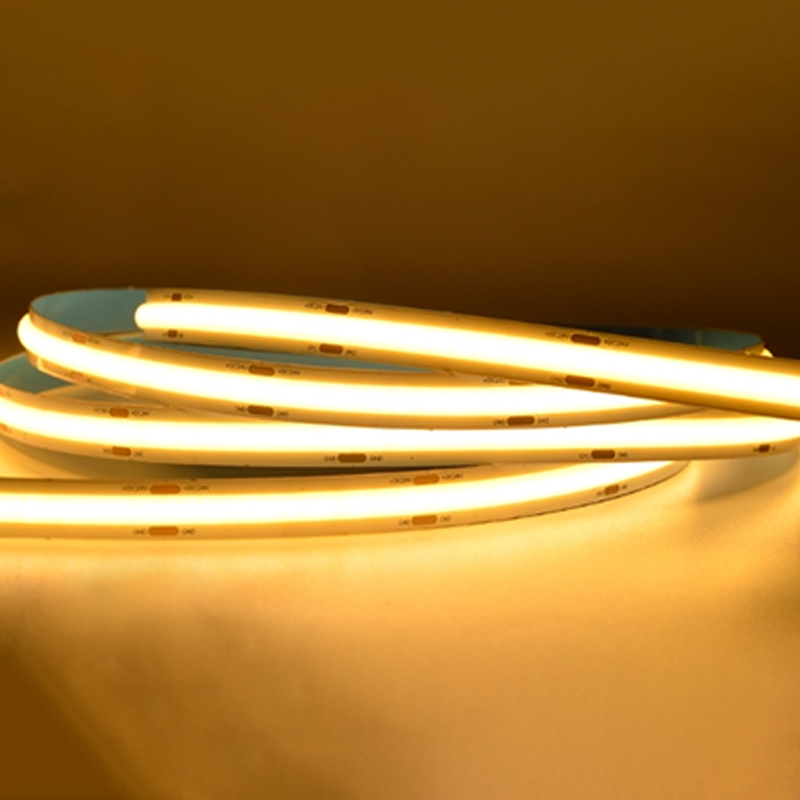

Tunable White 24V 624D

> Low luminous decay & anti-vulcanization

> Uniformed lighting, dot free, flicker free

> Anti-bending, no led-chip failure

> Safe, durable, low voltage drop

> 5m/10m a reel, 150mm welding wire in one or two ends.

> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃

Parameters

> Low luminous decay & anti-vulcanization

> Uniformed lighting, dot free, flicker free

> Anti-bending, no led-chip failure

> Safe, durable, low voltage drop

> 5m/10m a reel, 150mm welding wire in one or two ends.

> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃

Wattage (max) 7W+7W

Lumens 400-500LM+500-600lm

Efficacy (Lm/W) /m 60-70+70-80lm/W

CRI 90

Colour temp 2700-6500K

Input DC24V

Beam angle(°) 180°

LED Chips/m 624pcs

Width of PCB 8mm/10mm

Cutting Length 38.46mm

Warranty 3/5 years

Packing 10m/reel

Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length

PUCS-062402408DC3G07-S1 624pcs 7W+7W 2700-6500K 90 60-70+70-80lm/W 8mm 38.46mm

PUCS-062402410DC3G07-S1 624pcs 7W+7W 2700-6500K 90 60-70+70-80lm/W 10mm 38.46mm
