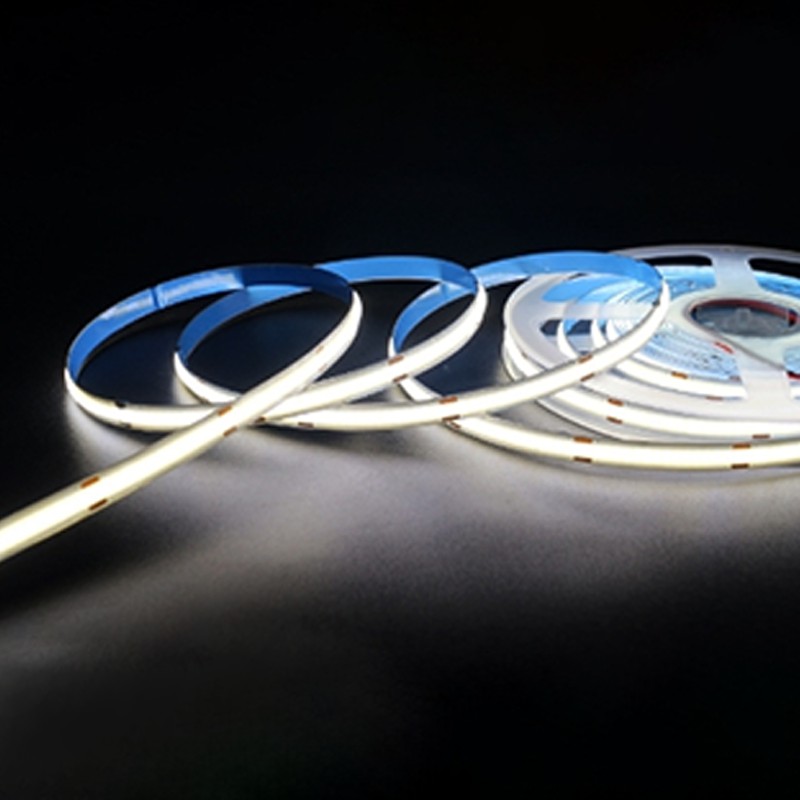

Standard Strip 24V 320D
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
- Parameters
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
Wattage (max) 10W
Lumens 1100lm @4000K,RA80
Efficacy (Lm/W) /m 110lm/W @4000K,RA80
CRI 80/90
Colour temp 3000/4000/6500K
Input DC24V
Beam angle(°) 180°
LED Chips/m 320pcs
Width of PCB 8mm
Cutting Length 50mm
Warranty 3 years
Packing 10m/reel
Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-032002408D30F10-S1 320pcs 10W 3000K 80 90-100lm/W 8mm 50mm
PUCS-032002408D40F10-S1 320pcs 10W 4000K 80 100-110lm/W 8mm 50mm
PUCS-032002408D65F10-S1 320pcs 10W 6500K 80 100-110lm/W 8mm 50mm
PUCS-032002408D30G10-S1 320pcs 10W 3000K 90 80-90lm/W 8mm 50mm
PUCS-032002408D40G10-S1 320pcs 10W 4000K 90 85-95lm/W 8mm 50mm
PUCS-032002408D65G10-S1 320pcs 10W 6500K 90 85-95lm/W 8mm 50mm
