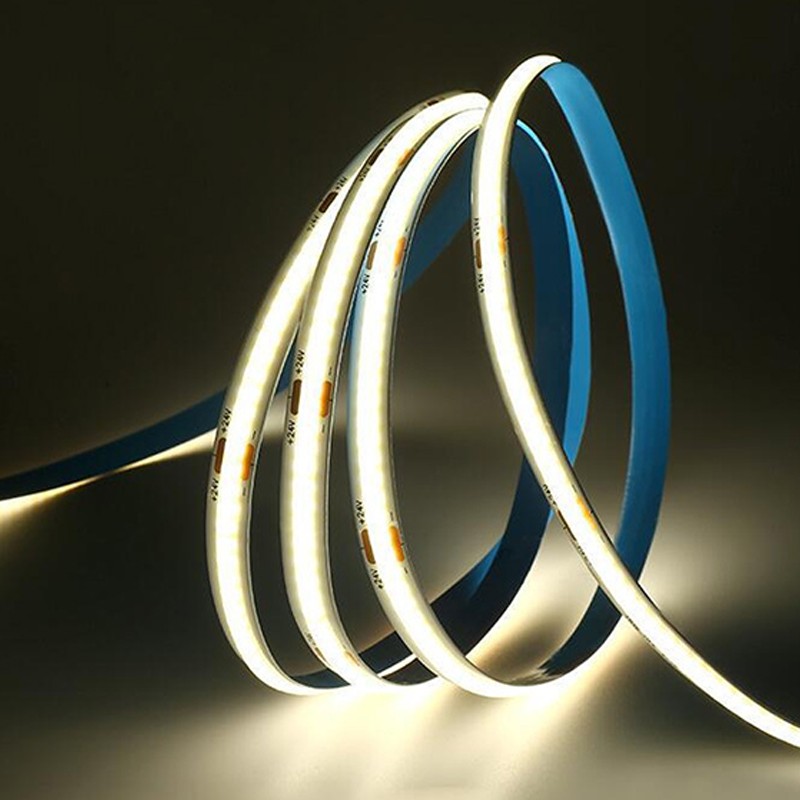

Standard Strip 12V 320D Mini
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
> Suitable for cabinet application
- Parameters
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
> Suitable for cabinet application
Wattage (max) 6W
Lumens 600lm @4000K
Efficacy (Lm/W) /m 100lm/W @4000K
CRI 90
Colour temp 3000/3500/4000K
Input DC12V
Beam angle(°) 180°
LED Chips/m 320pcs
Width of PCB 5mm

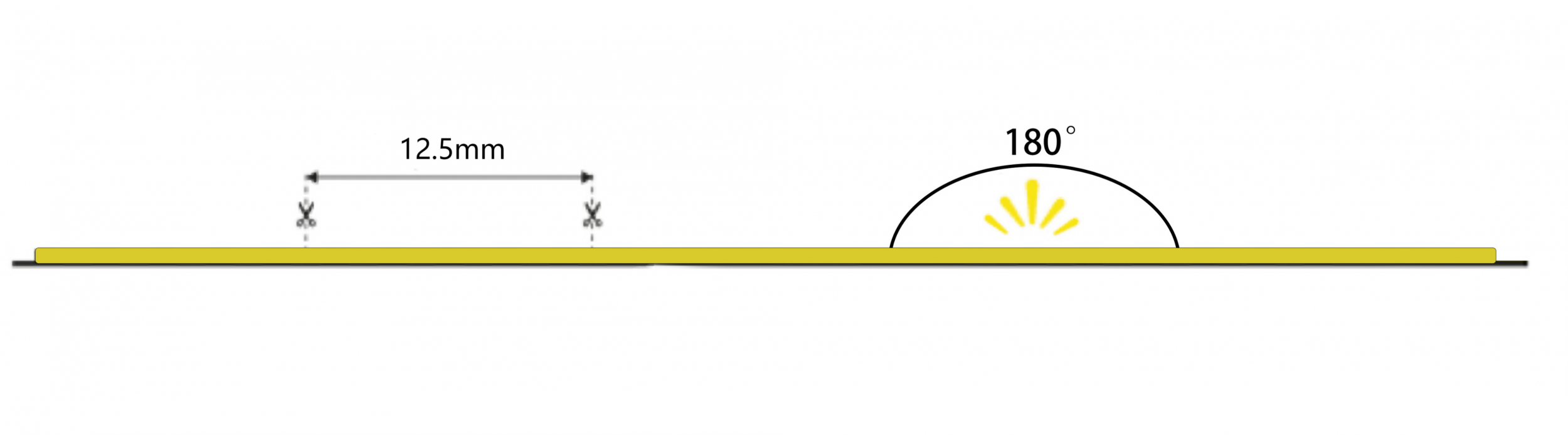

Min Cutting Length 12.5mm
Warranty 3 years
Packing 10m/reel
Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-032002405D30G06-S2 320pcs 8W 3000K 90 80-90lm/W 5mm 12.5mm
PUCS-032002405D35G06-S2 320pcs 8W 3500K 90 80-90lm/W 5mm 12.5mm
PUCS-032002405D40G06-S2 320pcs 8W 4000K 90 90-100lm/W 5mm 12.5mm
