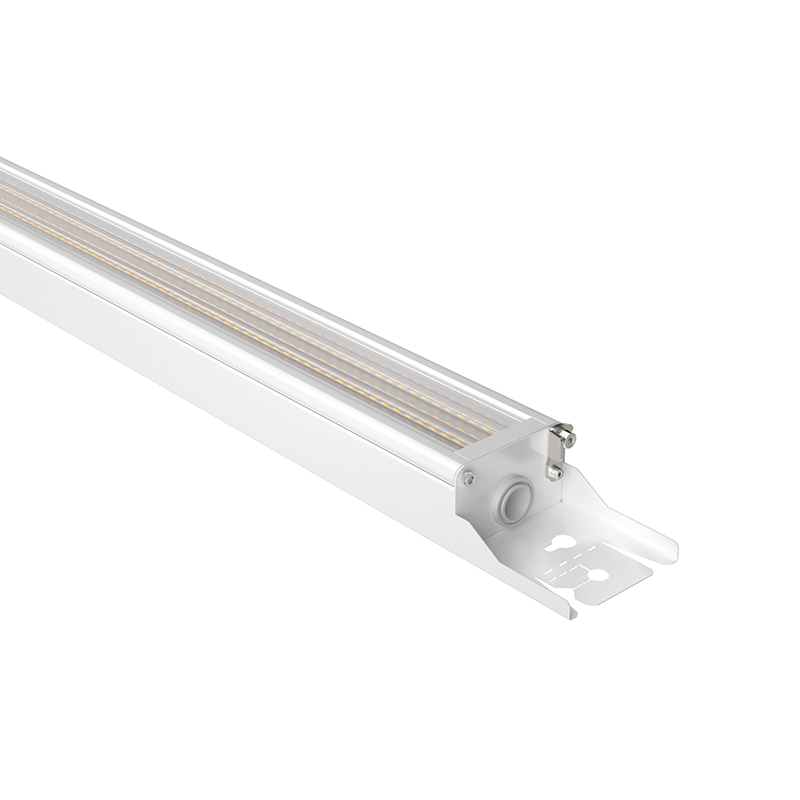

Pro Batten Double PCB
> Locking and fixing cover by rotating buckle to make it quick and flexible installation.
> 90° and 60° beam angles are optional, easily adjusted by different lens.
> Using screws to fix cover, no need tools to replace the lens and led part.
> Adopting 5 pole connector for easy wiring connection.
> All the function of on-off, DALI module are optional for flexible assembly.
- Parameters
> Locking and fixing cover by rotating buckle to make it quick and flexible installation.
> 90° and 60° beam angles are optional, easily adjusted by different lens.
> Using screws to fix cover, no need tools to replace the lens and led part.
> Adopting 5 pole connector for easy wiring connection.
> All the function of on-off, DALI module are optional for flexible assembly.
Wattage (max) 34-60W/45-80W switchable
Lumens 12800lm max @80W
Luminaire Efficacy (Lm/W) 160lm/W
CRI 80
Colour temp 3000/4000K
Input AC220-240V
Beam angle(°) 60°/90°
Length 1350/1650mm
Width 75mm
Height 47mm
Installation Surface mounted/Horizontal suspension
IP IP23
Lifespan 100000H@L80B10
Warranty 5 years
Colors White
Power supply ON-OFF/0-10V/DALI
Article No. Wattage LM/W CCT Dimension IP IK
PUBT135-060T300VN-03 34/42/52/60W 160lm/W 3000/4000K 1350*75*47mm 23 07
PUBT165-080T400VN-03 45/56/70/80W 160lm/W 3000/4000K 1650*75*47mm 23 07
