Lighting-Spot Strip 24V 140D
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> 10m a reel
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
- Parameters
> Low luminous decay & anti-vulcanization
> Uniformed lighting, dot free, flicker free
> Anti-bending, no led-chip failure
> Safe, durable, low voltage drop
> 10m a reel
> Operating Temperature:-40℃~55℃；Storage Temperature:-45℃~85℃
Wattage (max) 11W
Lumens 1000lm @4000K
Efficacy (Lm/W) /m 90lm/W @4000K
CRI 80
Colour temp 3000/4000/6500K
Input DC24V

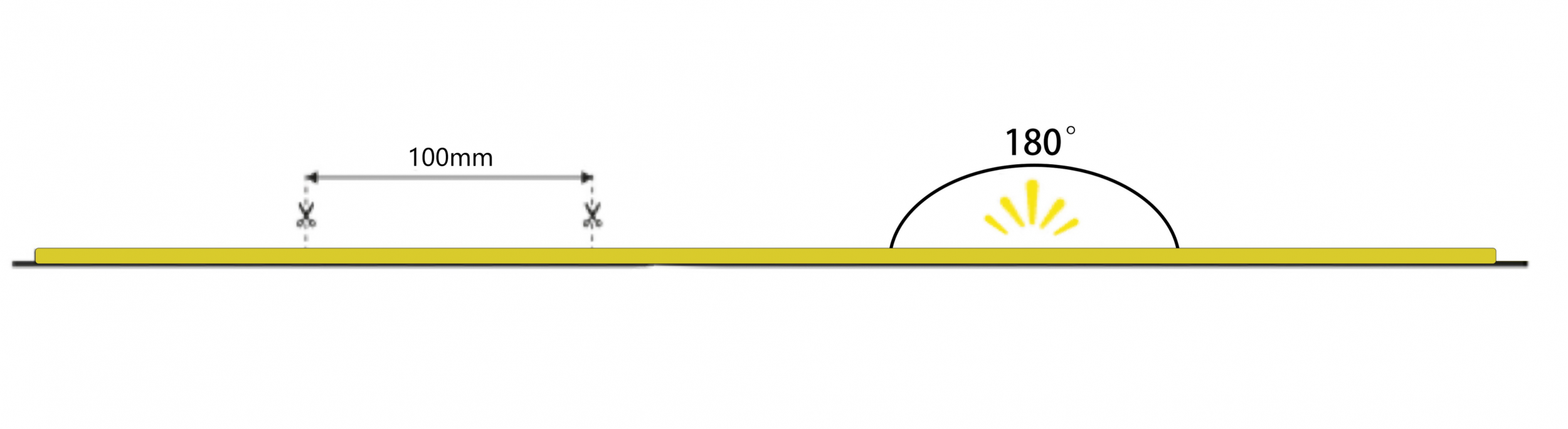

Beam angle(°) 180°
LED Chips/m 140pcs
Width of PCB 8mm
Min Cutting Length 100mm
Warranty 3 years
Packing 10m/reel
Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length
PUCS-014002408D30F11-S 140pcs 11W 3000K 80 70-80lm/W 8mm 100mm
PUCS-014002408D40F11-S 140pcs 11W 4000K 80 80-90lm/W 8mm 100mm
PUCS-014002408D65F11-S 140pcs 11W 6500K 80 80-90lm/W 8mm 100mm
