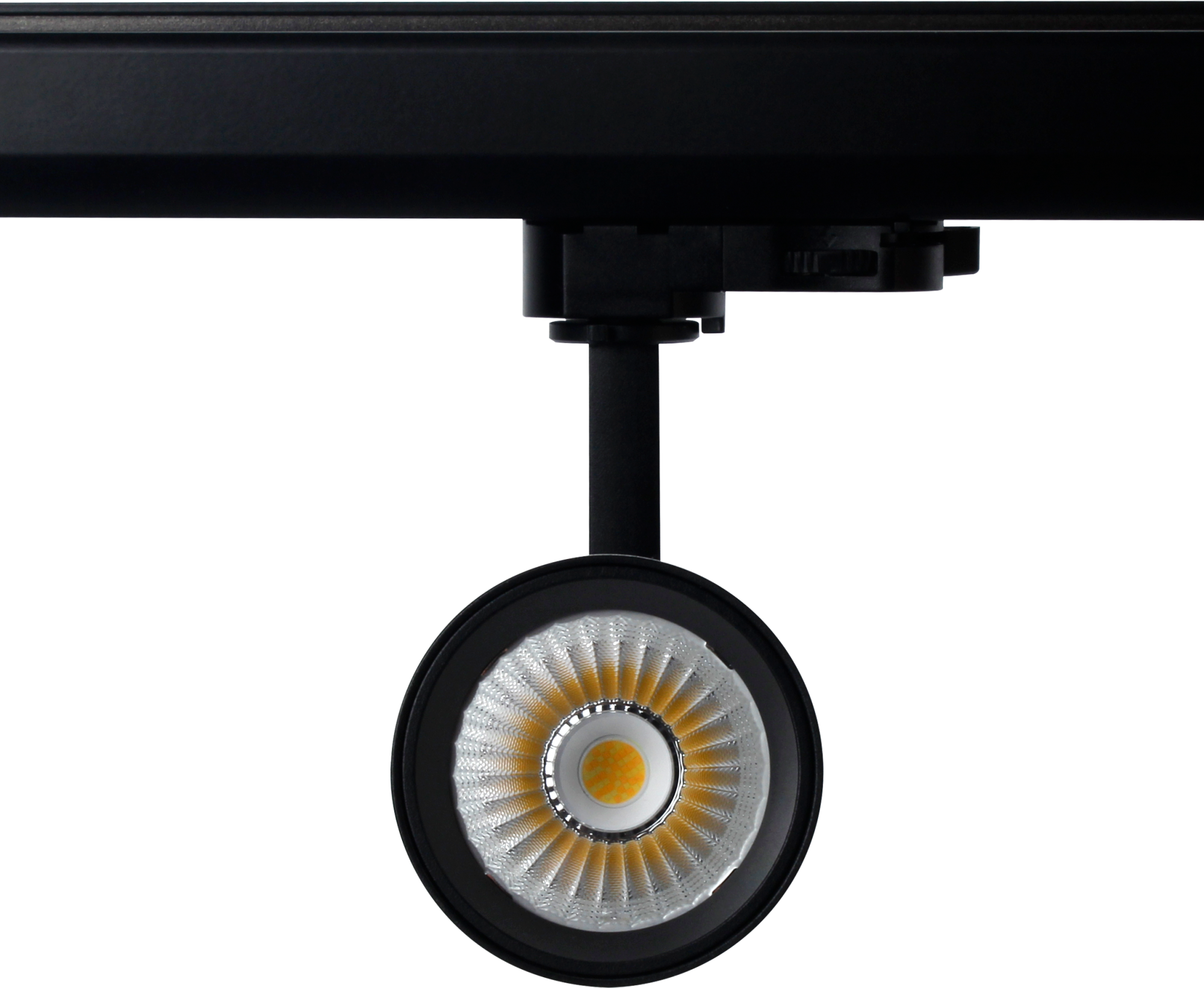

Fixed Standard
> CRI>90, single color or 2700-3000-4000K could be adjustedfreely by CCT Switch
> Full beam angle options 15°/ 24°/ 38°/ 45°/ 60°, meet differentrequest
> Unique cold forging process, high quality 60 series aluminiumfor better heat dissipation
> Reflector and lens both available
> Flexible unique design, lamp body could be rotated by 350° leftand right, 90° up and down
> Match standard 2-wires, 3-wires, 4-wires track rails
- Parameters
> CRI>90, single color or 2700-3000-4000K could be adjustedfreely by CCT Switch
> Full beam angle options 15°/ 24°/ 38°/ 45°/ 60°, meet differentrequest
> Unique cold forging process, high quality 60 series aluminiumfor better heat dissipation
> Reflector and lens both available
> Flexible unique design, lamp body could be rotated by 350° leftand right, 90° up and down
> Match standard 2-wires, 3-wires, 4-wires track rails
Wattage (max) 15/25/30/40W
Lumens 3200lm max
Luminaire Efficacy (Lm/W) 80lm/W
CRI 90
Colour temp 2700-3000-4000K Switchable
Input AC220-240V
Beam angle(°) 15°/ 24°/ 38°/45°/60°
Fixation Track
IP IP20
Lifespan 50000H@L80B10
Warranty 5 years
Colors White/Black
Power supply ON-OFF/Triac-dim/DALI
Article No. Wattage Lumen(max) CCT CRI Beam Angle Dimension
PUTL62-015-01 15W 1200lm 2700-3000-4000K 90 15°/ 24°/ 38°/45°/60° D62*170mm
PUTL72-025-01 25W 2000lm 2700-3000-4000K 90 15°/ 24°/ 38°/45°/60° D72*185mm
PUTL80-030-01 30W 2400lm 2700-3000-4000K 90 15°/ 24°/ 38°/45°/60° D80*186mm
PUTL90-040-01 40W 3200lm 2700-3000-4000K 90 15°/ 24°/ 38°/45°/60° D90*190mm
