Graphic
Detail

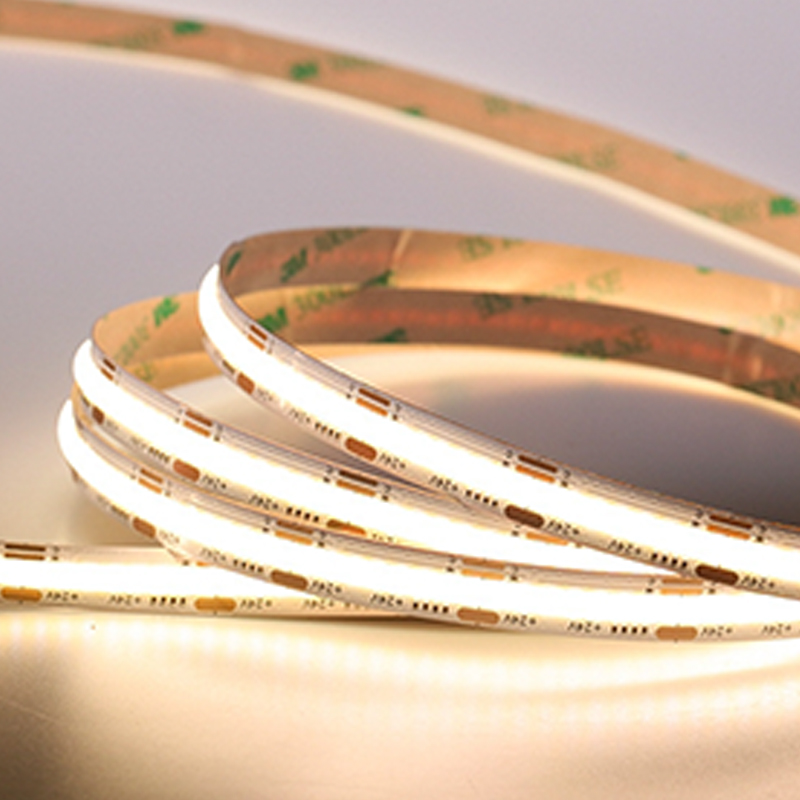

512D Double-sided

> Featuring a double-layer FPC for extended lifespan

> Low luminous decay & anti-vulcanization

> Uniformed lighting, dot free, flicker free

> Anti-bending, no led-chip failure

> Safe, durable, low voltage drop

> 3M glue, strong adhestive

Parameters

> Featuring a double-layer FPC for extended lifespan

> Low luminous decay & anti-vulcanization

> Uniformed lighting, dot free, flicker free

> Anti-bending, no led-chip failure

> Safe, durable, low voltage drop

> 3M glue, strong adhestive

Wattage (max) 10W

Lumens 1200lm @4000K

Efficacy (Lm/W) /m 120lm/W @4000K

CRI 90

Colour temp 2700/3000/4000

Input DC24V

Beam angle(°) 180°

LED Chips/m 512pcs

Width of PCB 8mm

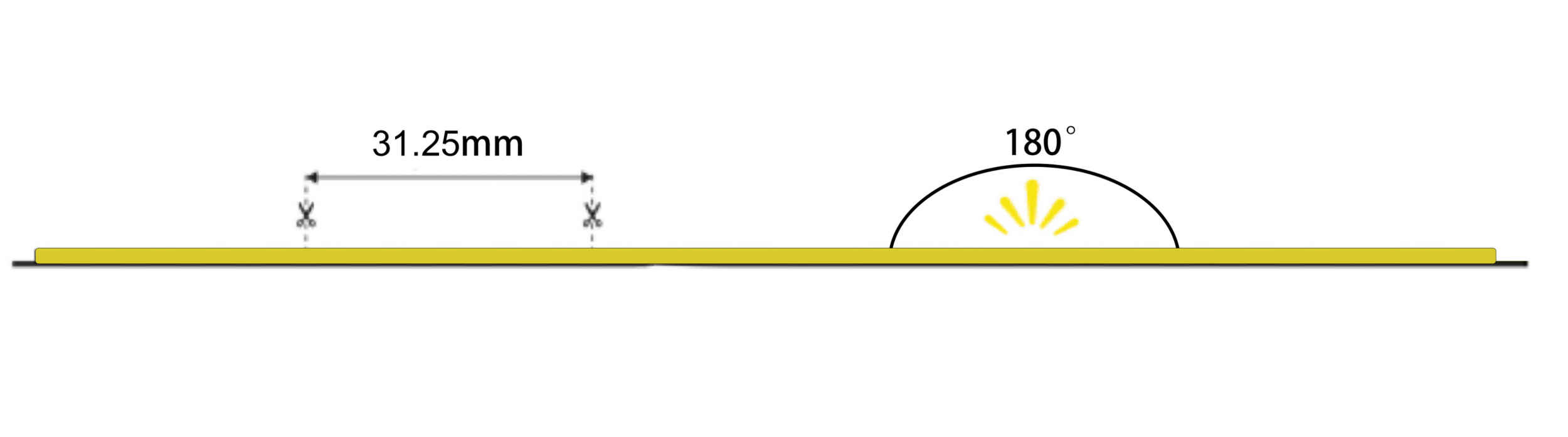

Min Cutting Length 31.25mm

Warranty 5 years

Packing 10m/reel

Article No. Chips/m Wattage CCT CRI Efficacy PCB Width Cutting Length

PUCS-051202408S27G10-S3 512pcs 10W 2700K 90 95-105lm/W 8mm 31.25mm

PUCS-051202408S27G10-S3 512pcs 10W 3000K 90 100-110lm/W 8mm 31.25mm

PUCS-051202408S27G10-S3 512pcs 10W 4000K 90 110-120lm/W 8mm 31.25mm
