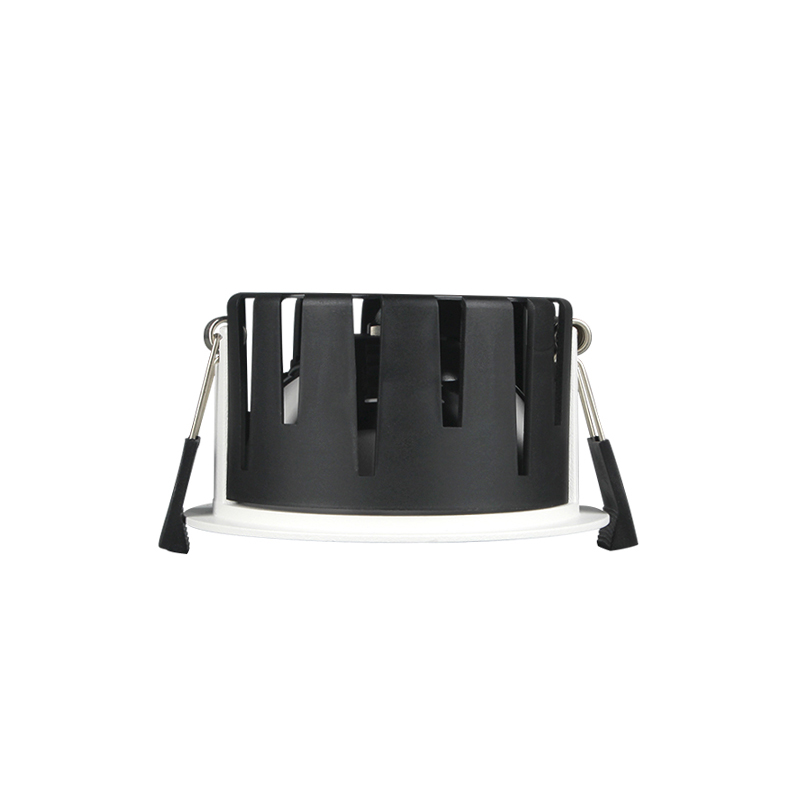

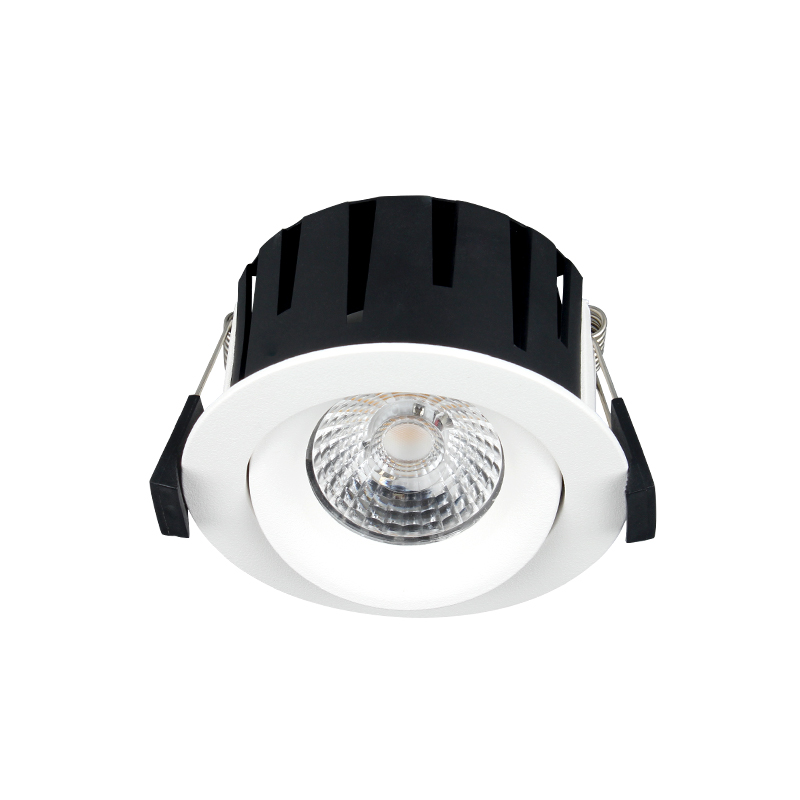

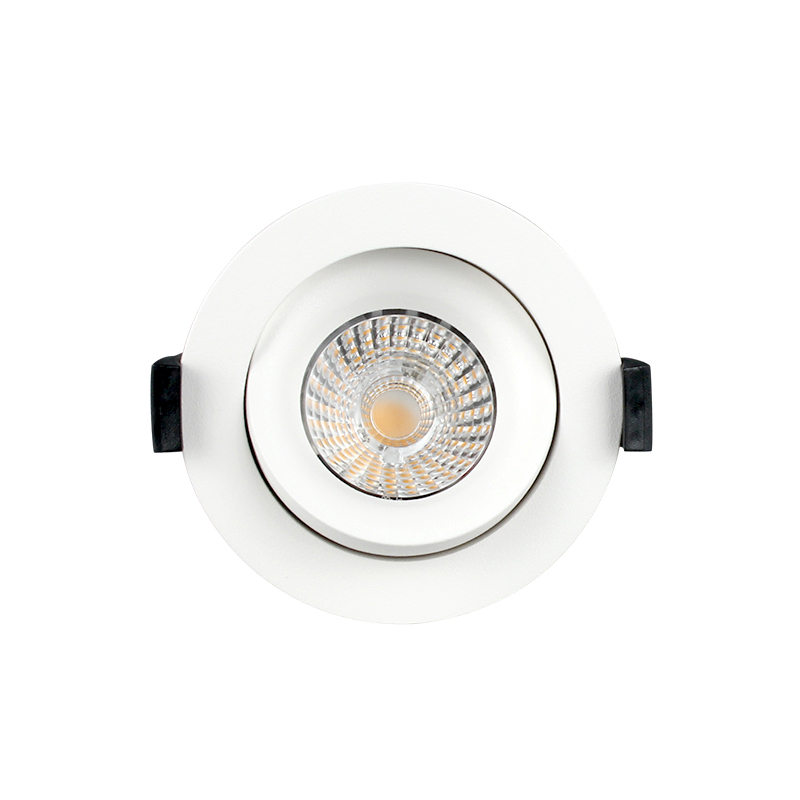

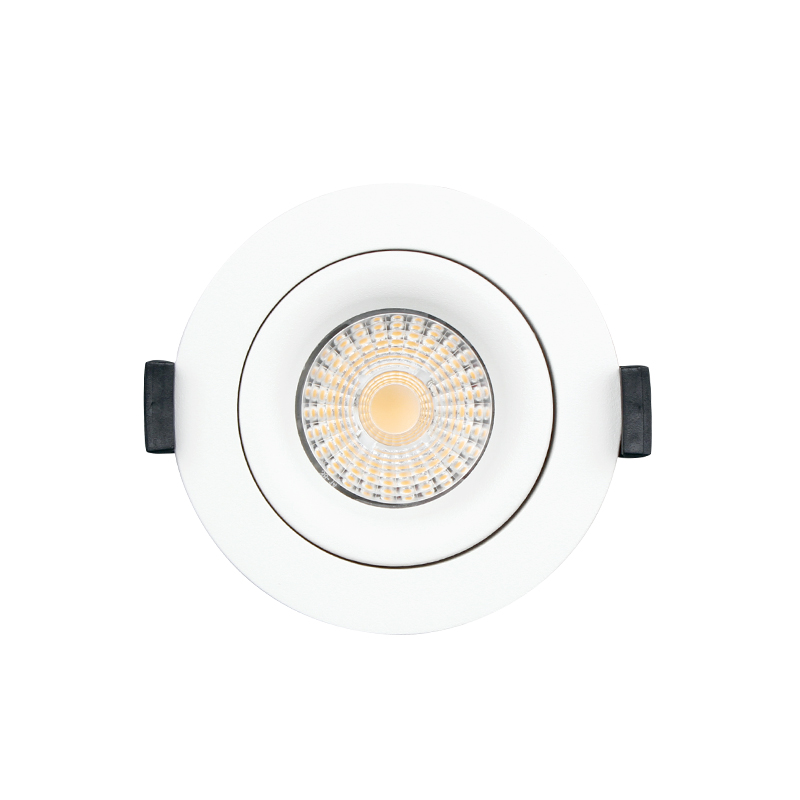

360° Rotary - Lens
> 360° lighting directions, 25° tilt
> With back lid for isolation installation, can be covered directly under insulation cotton
> Fast connection with junction box, fired-rated V0 level
> IP54 protection, pass 360hrs Salt spray testing
> Full options: reflector/lens, 18°/24°/38°/60°
> Dimmable, Tri-color, D2W, RGBCW available
- Parameters
> 360° lighting directions, 25° tilt
> With back lid for isolation installation, can be covered directly under insulation cotton
> Fast connection with junction box, fired-rated V0 level
> IP54 protection, pass 360hrs Salt spray testing
> Full options: reflector/lens, 18°/24°/38°/60°
> Dimmable, Tri-color, D2W, RGBCW available
Wattage (max) 8W
Lumens 600lm (4000K)
Efficacy (Lm/W) 75lm/W (4000K)
CRI 90
Colour temp 3000/4000/5000K/1800-3000K
Input 100-240V
Beam angle(°) 18°/24°/38°/60°

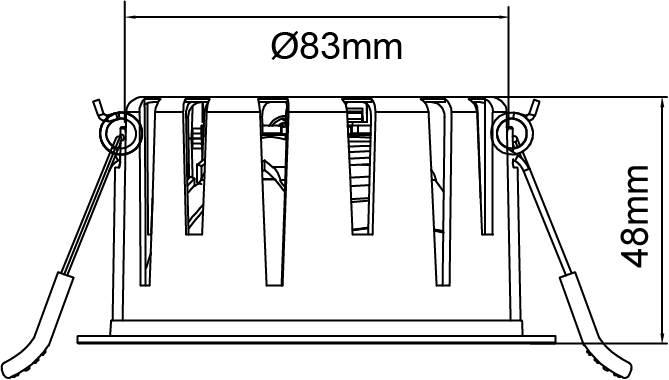

Cutout 83mm
Recessed depth 48mm
Fixation Recessed
IP IP54
Lifespan 50000H
Warranty 5 years
Colors White/Black/Silver/Chrome
Power supply ON-OFF/Triac-dim
Article No. Description Wattage CCT CRI IP
PUDL03-008-09 Single CCT 8W 3000/4000/5000K 90 54
PUDL03-008-09-DCM Multiple CCT 8W 3000-5700K 90 54
PUDL03-008-09-D2W Dim2Warm 8W 1800-3000K 90 54
